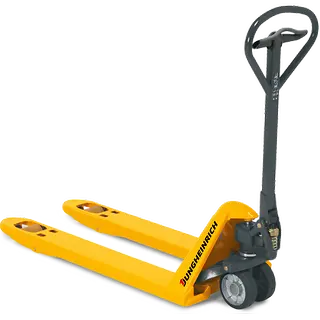

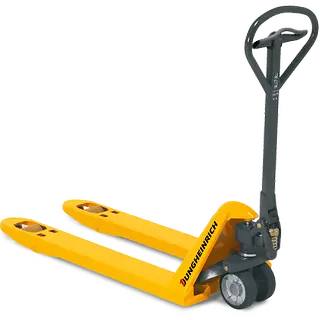

Transpaleţii manuali AM 22, robuşti şi fiabili, sunt utilaje clasice Jungheinrich, fiind ideali pentru transportul zilnic al bunurilor pe trasee scurte. Ele sunt extrem de uşor de manevrat, cu un element de operare ergonomic, care poate fi operat de pe ambele laturi cu o singură mână. Sistemul hidraulic, optim adaptat, în combinaţie cu bucşele cromate ale roţilor şi articulaţiilor permit mişcarea sarcinii cu efort minim. Acest lucru permite desfăşurarea deosebit de ergonomică a lucrului, crescând şi siguranţa în compania dvs. Disponibilitatea operaţională este asigurată în cazul acestor transpaleţi manuali de îmbinările cu lubrifiere permanentă, precum şi de sistemul hidraulic de pompare, fără necesar de întreţinere, dotat cu o supapă de coborâre specială. Oţelul de înaltă performanţă utilizat şi suportul sudat al manşei de comandă garantează durabilitatea AM 22. Pentru transportul simplu şi în siguranţă al mărfurilor în orice situaţie.
Caracteristici
Vedere de ansamblu model
Model | Capacitate de încărcare | Înălțime de ridicare | Viteza de conducere | Lungimea totală |
AM 22, 520x600, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x1054, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, N/GN, NH | 2.200 kg | 122 mm | - | 1.523 mm |
AM 22, 520x600, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.165 mm |
AM 22, 520x902, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.320 mm |
AM 22, 520x1054, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.424 mm |
AM 22, 520x1150, C-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.520 mm |
AM 22, 520x1207, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.577 mm |
AM 22, 520x600, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x902, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x950, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, N-BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.520 mm |
AM 22, 520x1207, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1360, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
AM 22, 520x1600, C/BV, NH | 1.500 kg | 122 mm | 0 km/h | 1.973 mm |
AM 22, 520x1900, C/BV, NH | 1.000 kg | 122 mm | 0 km/h | 2.273 mm |
AM 22, 520x2400, C/BV, NH | 500 kg | 122 mm | 0 km/h | 2.773 mm |
AM 22, 520x600, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, V-BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 2200, 680x1207, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x902, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x902, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x1150, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1360, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
AM 22, 680x1600, C/BV, NH | 1.700 kg | 122 mm | 0 km/h | 1.973 mm |
AM 22, 680x1900, C/BV, NH | 1.200 kg | 122 mm | 0 km/h | 2.773 mm |
AM 22, 680x600, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 220, 520x600, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x950, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.520 mm |
AM 22, 520x1207, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x600, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1360, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
AM 22, 520x1600, C-BV, SH | 1.500 kg | 122 mm | 0 km/h | 1.973 mm |
AM 220, 520x1900, C-BV, SH | 1.000 kg | 122 mm | 0 km/h | 2.273 mm |
AM 22, 520x2400, C-BV, SH | 500 kg | 122 mm | 0 km/h | 2.773 mm |
AM 22, 520x600, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 520x795, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 520x902, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 520x950, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 520x1054, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 520x1150, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 520x1207, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x1150, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 220, 680x950, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x950, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x950, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x600, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1360, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
AM 22, 680x1600, C-BV, SH | 1.700 kg | 122 mm | 0 km/h | 1.973 mm |
AM 22, 680x1900, C-BV, SH | 1.200 kg | 122 mm | 0 km/h | 2.273 mm |
AM 22, 680x600, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
AM 22, 680x795, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
AM 22, 680x902, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
AM 22, 680x950, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
AM 22, 680x1054, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
AM 22, 680x1150, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
AM 22, 680x1207, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
